Sunroof Switch - Description

DESCRIPTION

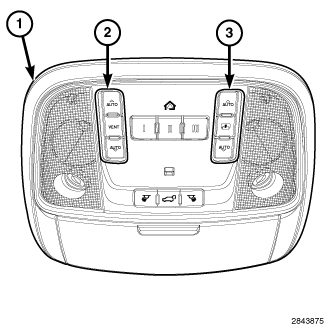

Vehicles equipped with a power sunroof have a power sunroof switch (2) integral to the overhead console (1) located in the headliner just forward of the sunroof opening. This switch has three momentary push buttons clearly identified by either text or icons indicating their functions. The three functions are from front-to-back: CLOSE, VENT, and OPEN. The switch push buttons also have instrument panel dimmer controlled Light Emitting Diode (LED) units that provide back lighting for visibility at night.

Vehicles with the optional dual pane (also known as CommandView(R)) sunroof also have a power sunshade switch (3) integral to the overhead console. This switch has two momentary push buttons that are also clearly identified by icons indicating their functions. The two functions are from front-to-back: CLOSE and OPEN. These switch push buttons are also back lit by LED units for visibility at night.

Both the power sunroof and (if equipped) the power sunshade switch are connected to the vehicle electrical system through the printed circuit board of the overhead console, which is connected to a dedicated take out and connector of the overhead wire harness. If either switch is ineffective or damaged, the entire overhead console must be replaced.
