Power Seat Switch - Description
Power Seat Switch - Description
DESCRIPTION

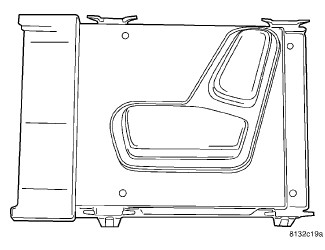

NOTE:
Driver
power seat switch
shown.
The standard driver power seat and available power front passenger seats can be adjusted using the
power seat switch
located on the outboard seat cushion side shield.
