Remote Radio Switches - Removal
REMOVAL
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the IBS/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

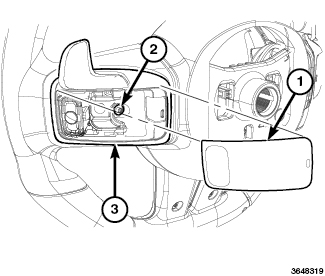

NOTE: With paddle shift shown, without paddle shift similar.
1. Disconnect the IBS/negative battery cable assembly from the negative battery post.
2. From the back of the steering wheel, remove the remote radio switch with paddle shift unit cover (1).
3. Remove the remote radio switch with paddle shift unit retainer (2).
4. Gently remove the remote radio switch with paddle shift unit (3) from the steering wheel.
