Front
FRONT
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar(R) Parts Catalog.
NOTE: The following procedure is for replacement of an ineffective or damaged seat belt and retractor unit. The front outboard retractors also include a seat belt tensioner. If the front seat belt or retractor is ineffective or damaged, but the seat belt tensioner is not deployed, review the recommended procedures for Handling Non-Deployed Supplemental Restraints. Service and Repair . If the seat belt tensioner has been deployed, review the recommended procedures for Service After A Supplemental Restraint Deployment before removing the unit from the vehicle. Service and Repair .
NOTE: All seat belt retractors except the driver side front retractor include a switchable automatic locking mechanism. Seat Belt Retractor - Description .

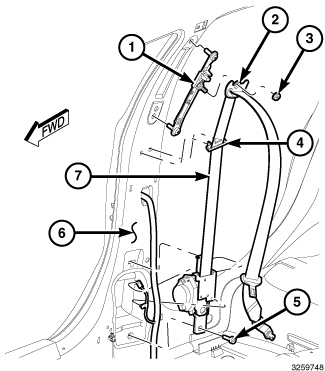

1. Position the front seat belt (7) and retractor into the vehicle as a unit.
2. Engage the T-tab on the upper retractor bracket into the T-slot in the inner B-pillar (6).
3. Install and tighten the screw (5) that secures the retractor bracket to the base of the inner B-pillar. Tighten the screw to 45 Nm (33 ft. lbs.).
4. Position the belt web guide (4) to the holes in the inner B-pillar and use hand pressure to press it firmly and evenly until the two clips that secure it snap into place. Be certain that the seat belt webbing between the retractor and the web guide is not twisted.
5. Position the seat belt turning loop (2) onto the stud of the height adjuster (1) on the upper inner B-pillar. Be certain that the seat belt webbing between the retractor and the turning loop is not twisted.
6. Install and tighten the nut (3) that secures the turning loop to the height adjuster. Tighten the nut to 45 Nm (33 ft. lbs.).

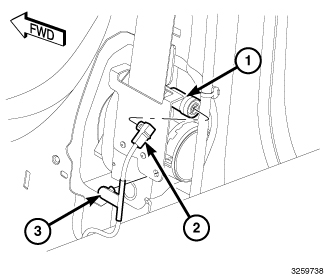

7. Reconnect the yellow connector (2) of the body wire harness to the seat belt tensioner initiator (1) on the retractor.
8. Engage the body wire harness retainer (3) to the retractor bracket.
9. Reinstall the trim onto the inside of the B-pillar. B-Pillar Trim Panel - Installation.

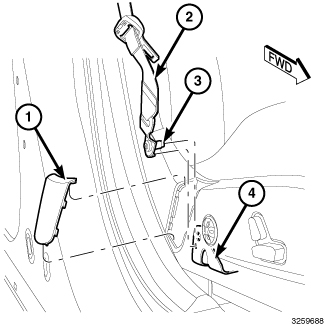

10. Position the seat belt lower anchor (2) to the mounting bracket (4) on the outboard side of the front seat cushion frame. Be certain that the seat belt webbing between the turning loop and the lower anchor is not twisted.
11. Install and tighten the screw (3) that secures the lower anchor to the seat. Tighten the screw to 45 Nm (33 ft. lbs.).
12. Reinstall the lower anchor cover (1) onto the front seat cushion outboard side shield by seating the integral lower tab of the cover into position, then pushing inward using care to avoid breaking any of the cover tabs.
13. Do not reconnect the battery negative cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Service and Repair.
