Rear

REAR SEAT

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar(R) Parts Catalog.

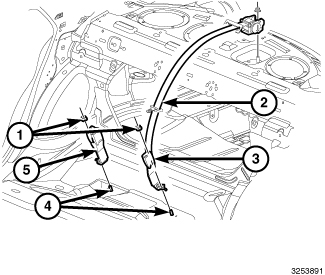

NOTE: The right outboard and center rear seating position buckles (5) are serviced only as a unit. The left outboard rear seating position buckle (3) is integral to the center rear seating position seat belt and retractor (2) lower anchor. Seat Belt Retractor - Installation .

1. Position the anchor plate of the right outboard and center rear seating position buckles (5) onto the stud (4) on the center floor panel. Be certain to engage the anti-rotation tab of the anchor plate into the clearance hole in the floor panel.
2. Install and tighten the nut (1) that secures buckle anchor plate to the floor. Tighten the nut to 40 Nm (30 ft. lbs.).
3. Reinstall the rear seat cushion into the vehicle. Seat Cushion Cover - Installation.
