Electro-Hydraulic Power Steering Module - Description

DESCRIPTION






CAUTION: There is an Electro Hydraulic Power Steering (EHPS) pump on Non-SRT vehicles which requires a different power steering fluid. Do not mix power steering fluid types. Damage may result to the power steering pump and system if any other fluid is used. The EHPS system uses fluid which meets material specification MS-11655 or equivalent. Do not overfill.

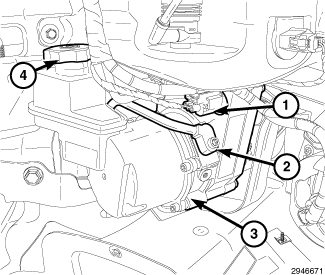

NOTE: There is no internal service of the Electro-Hydraulic Power Steering (EHPS) module. The EHPS module is integral to the EHPS pump (3). Replace the EHPS module as an assembly, including the brackets, and EHPS pump.

The EHPS pump is located in front of the right side tire and can be accessed by loosening and positioning aside the right front wheelhouse splash shield.
