Firing Order: Specifications
FIRING ORDER

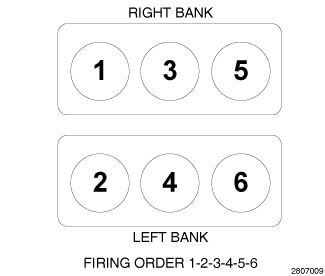

3.6L
The
firing order
for the 3.6L V-6 is 1-2-3-4-5-6.

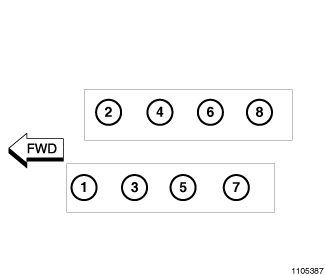

5.7L / 6.4L
The
firing order
for the 5.7L and 6.4L V-8 is 1-8-4-3-6-5-7-2.
