Installation

INSTALLATION






NOTE: When the SRV actuator is removed, a new rubber O-ring seal must be installed. The old O-ring cannot be reused.

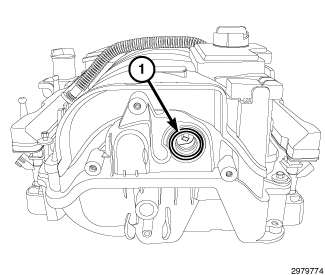

1. Install a new SRV actuator rubber O-ring seal (1).

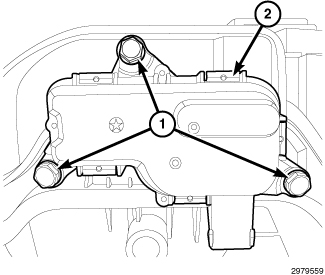

2. Position the SRV actuator (2), install the retaining bolts (1) and tighten to 5 Nm (44 in. lb.).

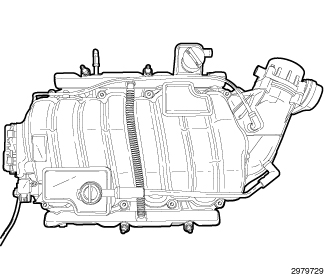

3. Install the intake manifold and throttle body as an assembly Intake Manifold - Installation.





4. Connect the negative battery cable (1).
