Front Lamp Unit Bulb - Installation - Park/Turn Signal

BULB - FRONT PARK AND TURN SIGNAL

WARNING: To avoid serious or fatal injury when working on the High Intensity Discharge (HID) headlamp system, be certain to take the proper precautions. The headlamp switch must be in the OFF position. Disconnect and isolate the battery negative cable. There is a risk of fatal injury caused by contact with high voltage used in the HID headlamps. There is a risk of explosion or fire caused by highly flammable materials in the vicinity of damaged HID lighting elements. There is a risk of injury caused by exposure to Ultra Violet (UV) light, a risk of burns caused by high component operating temperatures, a risk of mercury poisoning through glass splinters produced by bursting HID lighting elements. There is also a risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with the skin. Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on HID headlamps. Wear insulated safety shoes, safety glasses and protective gloves. Remove flammable materials and ensure sufficient ventilation in the working area.

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

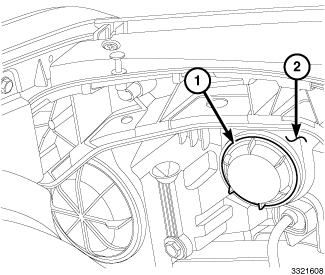

1. Align the index tabs of the front fog lamp bulb with the slots in the collar of the bulb opening on the back of the front lamp unit reflector (3).
2. Insert the bulb into the housing until the index tabs are engaged in the slots of the collar.
3. Firmly and evenly push the bulb straight into the lamp reflector until both bulb latch features (2 and 5) snap into place and are fully engaged.
4. Reconnect the front lamp unit wire harness connector (1) to the bulb connector receptacle (4).





5. Position the bulb access cover (1) onto the inboard back of the front lamp unit housing (2) and rotate it clockwise about 30 degrees to lock it into place.
6. For the left hand side only, position the engine air cleaner assembly to the Front End Module (FEM) structural support and reinstall the fastener that secures the air cleaner assembly.
7. Reconnect the battery negative cable.
