Mirror Lamp - Installation

INSTALLATION

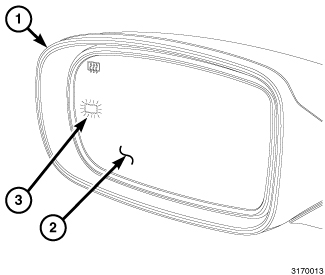

APPROACH LAMP





Vehicles equipped with the Passive Entry (PE) system have approach lamps (3) located in the outside rear view mirrors (1). This lamp consists of a clear Light Emitting Diode (LED) unit integral to the mirror glass and case (2) that illuminates through the mirror glass whenever the interior courtesy lamps are active, such as when a door is ajar or with the illuminated entry feature. This lamp is serviced only as a unit with the mirror glass and case. Outside Rearview Mirror - Removal.Outside Rearview Mirror - Installation.

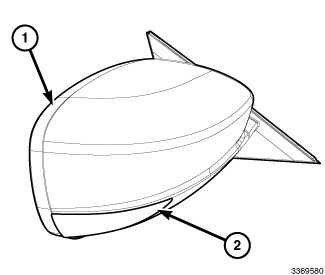

SIGNAL LAMP
