Trunk Lamp Bulb - Installation

BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

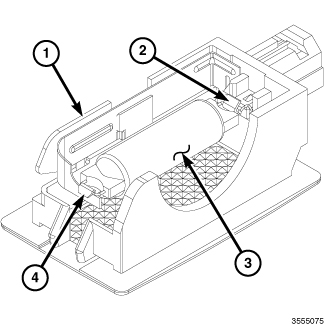

1. Engage the wire loop terminal on one end of the bulb (3) over the hook on the movable bulb holder (4).
2. Gently press the movable bulb holder and bulb towards the fixed bulb holder (2) far enough to engage the wire loop terminal over the hook on the fixed bulb holder, then release the movable bulb holder.
3. Reinstall the trunk lamp unit (1) into the right or left trunk trim panel. Trunk Lamp - Installation
4. Reconnect the battery negative cable.
