Rear

BULB - REAR

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.






NOTE: The rear dome/reading lamps are integral to the grab handle in the headliner on the inner roof side rail over each outboard rear seating position. The lamp housing, switch and wiring are serviced only as a unit with the grab handle assembly.

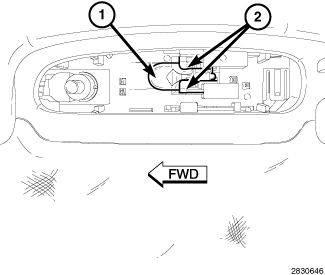

1. Align the base of the bulb (1) with the bulb holders (2) within the rear reading lamp housing.
2. Push the bulb straight rearward into the bulb holders until the base is fully seated.





3. Insert the large tab on the rearward end of the lamp lens (2) into the rear end of the lamp housing.
4. Using hand pressure, push the small tab at the front of the lens rearward and inward towards the lamp housing until it snaps into place.
5. Reconnect the battery negative cable.
