Front

BULB - FRONT

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

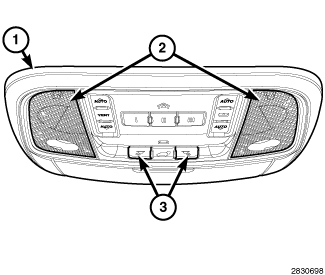

NOTE: The front dome and the front map/reading lamps are integral to the overhead console (1) in the headliner near the windshield. Both the incandescent dome lamps and the Light Emitting Diode (LED) map/reading lamps share the same two lenses (2) in the overhead console. Both the dome lamps and the map/reading lamps are turned ON and OFF by the door ajar switches or by the interior lighting thumbwheel of the headlamp switch. The front dome lamps can be turned ON independently by depressing the lamp lenses, while the front map/reading lamps are turned ON or OFF independently by the two map/reading lamp push button switches (3). The incandescent dome lamp bulbs are serviceable; however, the LED map/reading lamps as well as all of the switches, lamp housings, lenses and wiring are serviced only as a unit with the overhead console assembly.

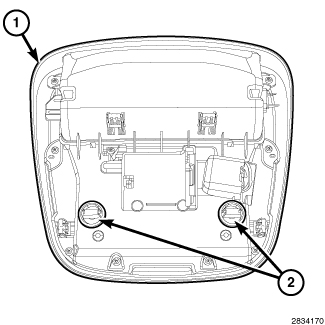

1. Reach above the top of the overhead console (1) to align and insert the bulb and bulb holder unit (2) into the keyed opening of the overhead console lamp housing until the bulb holder is firmly seated.
2. Rotate the bulb and bulb holder unit clockwise about 30 degrees to lock it into place.
3. Reinstall the overhead console onto the headliner. Overhead Console - Installation.
4. Reconnect the battery negative cable.
