Entry/Exit Lamp - Installation

LAMP

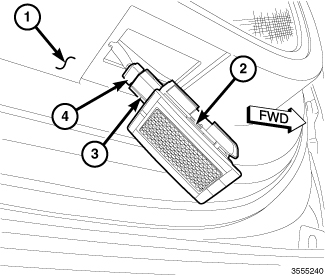

1. Position the entry and exit lamp (also known as the puddle lamp) to the mounting hole in the lower horizontal surface of the front or rear door trim panel (1).
2. Reconnect the door wire harness connector (4) to the connector receptacle (3) integral to the lamp housing.
3. Insert the connector end of the lamp into the rearward end of the mounting hole in the door trim panel far enough to engage the fixed retention tabs with the edge of the mounting hole.
4. Using hand pressure, press the front (notched) edge of the lamp lens (2) upward until the movable retention tabs snap into place and the lens is just proud of the trim panel.
5. Reconnect the battery negative cable.
