Courtesy Lamp - Removal

REMOVAL





1. Disconnect the battery negative cable.
2. Place the shifter into the neutral position.
3. Insert a trim stick or equivalent at (1) and gently pry to remove the shifter trim ring (2).

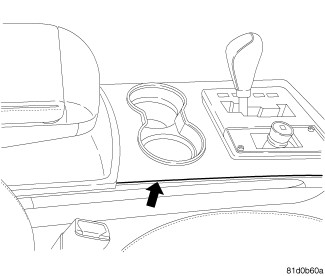

4. Insert a trim stick or equivalent at point (1) and gently pry to remove console trim from the center console.





5. Disconnect the electrical connector (1) from the LED lamp unit (2).
6. Remove the LED lamp (2) from the center console by flexing the lock tabs on the unit.
