Glove Box Lamp/Switch - Installation

LAMP/SWITCH

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

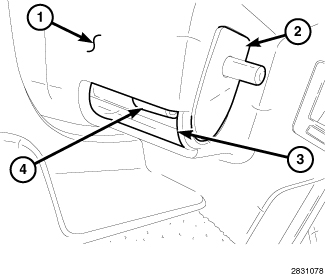

1. Position the glove box lamp and switch unit (2) to the instrument panel glove box housing (1).
2. Reconnect the wire harness connector to the lamp and switch unit.
3. Feed the wire harness back through the switch mounting hole.
4. Align the lamp and switch unit with the mounting hole in the instrument panel glove box housing.
5. Using hand pressure, push the lamp and switch unit firmly and evenly into the mounting hole until it is fully seated.
6. Close the glove box.
7. Reconnect the battery negative cable.
