Instrument Cluster / Carrier: Locations

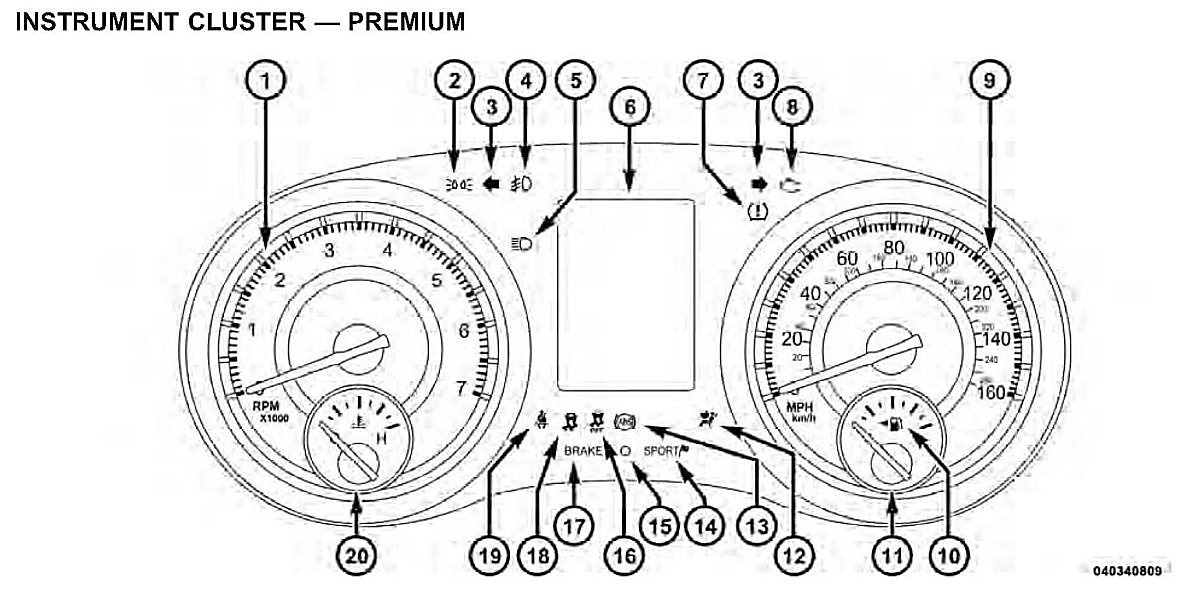

Premium:

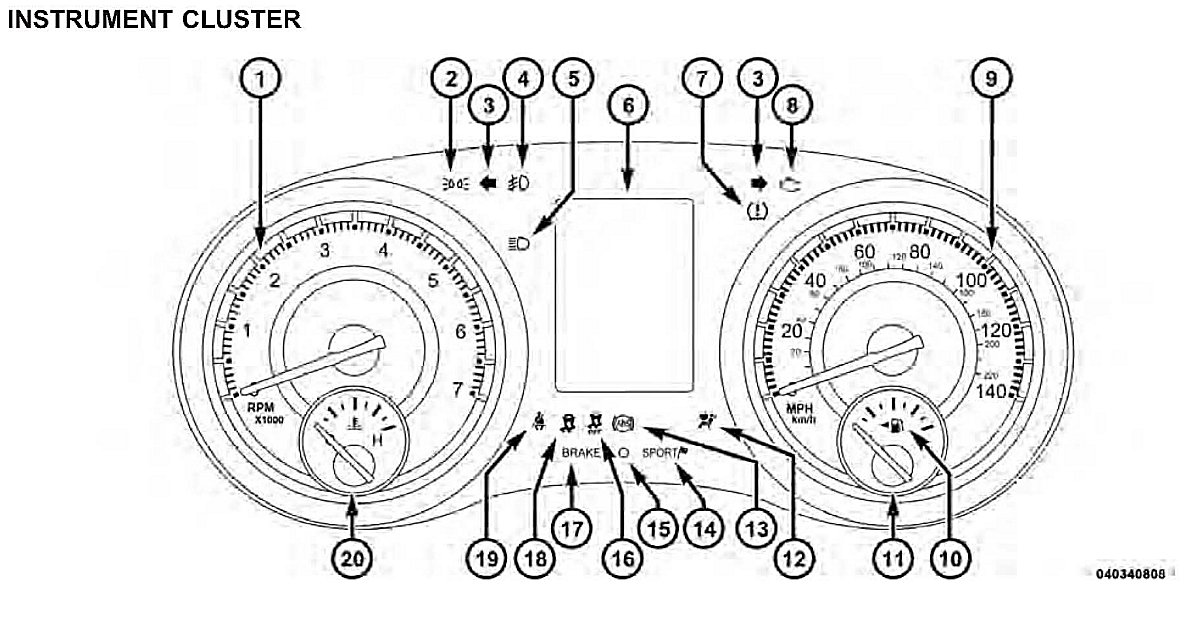

Base:

1. Tachometer
2. Park/Headlight ON Indicator - If equipped
3. Turn Signal Indicators
4. Front Fog Light Indicator - If equipped
5. High Beam Indicator
6. Odometer Display/Electronic Vehicle Information Center (EVIC) Display
7. Tire Pressure Monitoring Telltale Light - If equipped
8. Malfunction Indicator Light (MIL)
9. Speedometer
10. Fuel Door Reminder
11. Fuel Gauge
12. Air Bag Warning Light
13. Anti-Lock Brake (ABS) Light
14. Sport Mode - If equipped
15. Vehicle Security Light - If equipped
16. Electronic Stability Control (ESC) OFF Indicator - If equipped
17. Brake Warning Light
18. Electronic Stability Control (ESC) Activation/malfunction Indicator Light - If equipped
19. Seat Belt Reminder Light
20. Temperature Gauge
