Silencer Panel - Installation

INSTALLATION

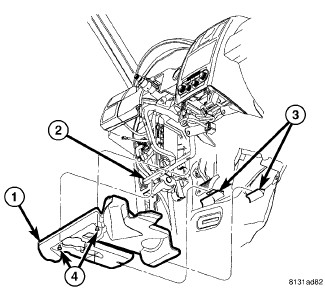

DRIVER SIDE





1. Position the instrument panel silencer (1) into the vehicle.
2. Install the instrument panel silencer above the brackets (3) located near the dash panel.
3. Install the push-pins (4) that secure the instrument panel silencer to the instrument panel bracket (2).

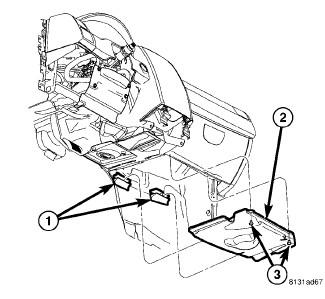

PASSENGER SIDE





1. Position the instrument panel silencer (2) into the vehicle.
2. Install the instrument panel silencer above the brackets (1) located near the dash panel.
3. Install the push-pins (3) that secure the instrument panel silencer to the instrument panel.
