Compass Module - Removal

REMOVAL

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.





1. Disconnect and isolate the battery negative cable.
2. Remove the center bezel from the instrument panel. Instrument Panel Center Bezel - Removal.

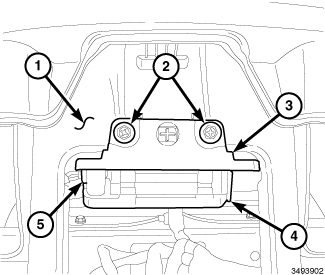

3. Remove the two screws (2) that secure the Remote Compass Module (RCM) mounting bracket (3) near the top of the instrument panel structural support (1).
4. Pull the RCM (4) and mounting bracket out from the instrument panel structural support far enough to access and disconnect the instrument panel wire harness connector (5) from the RCM connector receptacle.
5. Remove the RCM and mounting bracket unit from the vehicle.

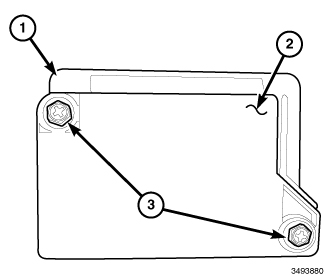

6. Remove the two screws (3) that secure the RCM (2) to the mounting bracket (1).
7. Remove the RCM from the mounting bracket.
