A/C And Heater Control Module - Removal

REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

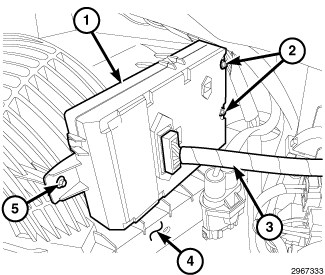

NOTE: Illustration shown with instrument panel removed from view for clarity.





1. Disconnect and isolate the negative battery cable.
2. Remove the right side instrument panel silencer panel Silencer Panel - Removal.
3. Remove the glove box and the glove box trim panel from the instrument panel Instrument Panel Glove Box - Removal.
4. Disconnect the wire harness connector (3) from the A/C heater module (1), located on the air inlet housing (4).

NOTE: It is not necessary to fully remove the two front A/C heater module retaining screws. The front A/C heater module retaining tabs are slotted to aid in module service.

5. Loosen the two screws (2) that secure the front of the A/C heater module to the air inlet housing.
6. Remove the one screw (5) that secures the rear of the A/C heater module to the air inlet housing.
7. Slide the A/C heater module rearward to disengage the module from the two front retaining screws and remove the module.
