Air Distribution Housing

HOUSING-AIR DISTRIBUTION

NOTE: LHD model shown in illustrations. RHD model similar.

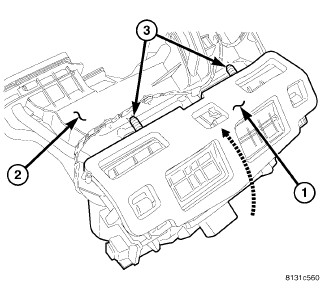

1. Install the air distribution housing onto the rear of the HVAC housing (2) by inserting the tabs on the bottom of the distribution housing into the slots located on the bottom of the HVAC housing and tipping the distribution housing upward until it is properly aligned with the HVAC housing.
2. Install the two screws (3) that secure the air distribution housing to the HVAC housing. Tighten the screws to 2.2 Nm (20 in. lbs.).

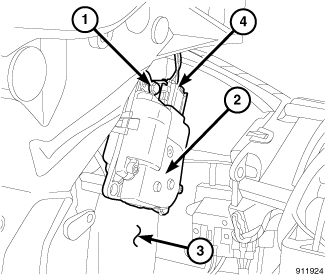

3. Connect the HVAC wire harness (4) to the blend door actuator (2) located on the passenger side of the air distribution housing (3).





4. Install the heater core (5) into the driver side of the air distribution housing (6) and engage the heater core tubes to the foam seal (8).
5. Install heater core bracket (3) and retaining screw (4). Tighten the screw to 2.2 Nm (20 in. lbs.).
6. Install the flange (1) over the heater core tubes and onto the HVAC housing (2).
7. Install the screw (7) that secure the flange to the front of the HVAC housing. Tighten the screw to 2.2 Nm (20 in. lbs.).

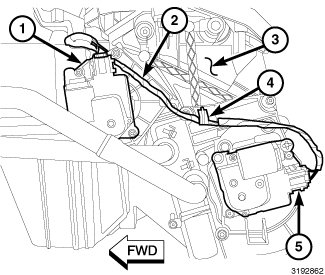

8. Connect the HVAC wire harness (2) to the mode door actuator (5) and the blend door actuator (1), located on the driver side of the air distribution housing (3).
9. Engage the HVAC wire harness to the retaining tab (4).
10. Install the HVAC housing assembly HVAC Housing - Installation.
