Evaporator Temperature Sensor - Removal

REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.





1. Disconnect and isolate the negative battery cable.
2. Remove the right side instrument panel silencer Silencer Panel - Removal.
3. Remove the glove box and the glove box trim panel from the instrument panel Instrument Panel Glove Box - Removal.

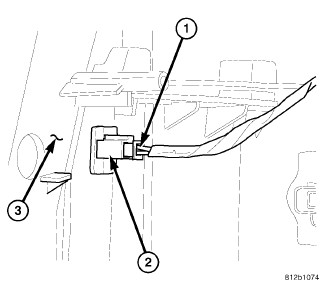

4. Disconnect the HVAC wire harness connector (1) from the evaporator temperature sensor (2) located on the HVAC housing (3) and remove the sensor.
