Blower Motor - Installation

INSTALLATION

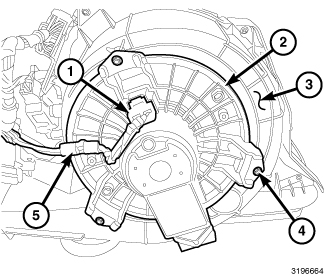

NOTE: LHD model shown. RHD model similar.





1. Position the blower motor (2) into the HVAC housing (3).
2. Install the three screws (4) that secure the blower motor to the HVAC housing. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Connect the wire harness connector (1) to the blower motor and engage the wire harness retainer (5).
4. Install the passenger side instrument panel silencer Silencer Panel - Installation
5. Reconnect the negative battery cable.
