Muffler: Description and Operation

DESCRIPTION





The 3.6L exhaust pipe assembly consists of:

- Muffler and resonator assembly module (5)
- Isolators (6)

The muffler and resonator assembly is serviced as an assembly.

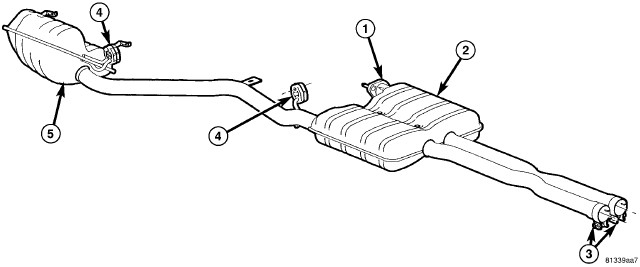

The 5.7L/6.4L RH muffler and tailpipe assembly consists of:





- Front exhaust pipe and muffler (2) and resonator (5)
- Ball flange (1)
- Isolators (4)
- Band clamps (3)

The muffler and resonator assembly is serviced as an assembly.
