Water Pump - Removal

3.6L






NOTE: The water pump on 3.6L engines is bolted directly to the engine timing chain case cover.

1. Disconnect negative battery cable from battery.
2. Remove the air intake system and the air filter box cover (2) as an assembly.
3. Drain the cooling system Service and Repair.





4. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal.

WARNING: Constant tension hose clamps are used on most cooling system hoses. When removing or installing, use only tools designed for servicing this type of clamp. Always wear safety glasses when servicing constant tension clamps.

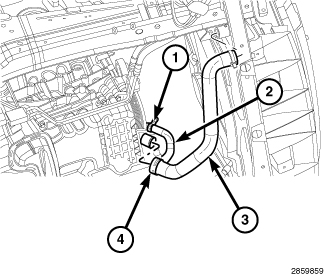

CAUTION: A number or letter is stamped into the tongue of constant tension clamps (4). If replacement is necessary, use only an original equipment clamp with matching number or letter.

5. Remove the lower heater hose (1) at the water pump and position aside.
6. Remove the lower radiator hose (3) from the water pump and position aside.





7. Remove idler pulley (4) Accessory Drive Idler Pulley - Removal.
8. Remove the eleven water pump mounting bolts. Take notice to the four water pump bolts (2) that bolt directly to the timing cover.

CAUTION: Do not pry on the water pump at the timing chain case/cover. The machined surfaces may be damaged resulting in leaks.

9. Remove water pump (1) and discard gasket.
