Off Vehicle

OFF VEHICLE

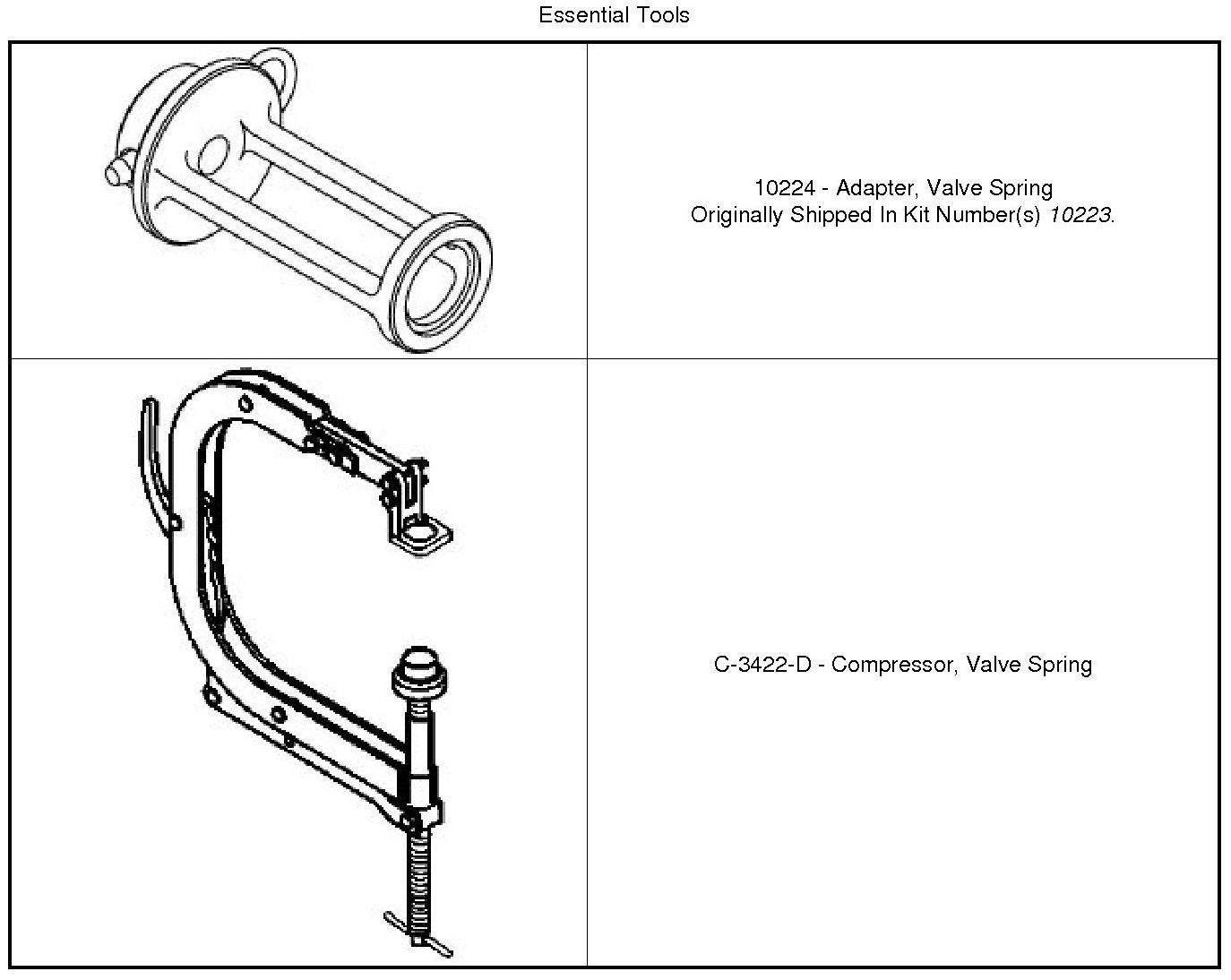

Special Tools:










1. Remove the cylinder head(s) Cylinder Head - Removal
2. Position the Valve Spring Compressor Adapter (2) in the Valve Spring Compressor (1).






NOTE: Number 3 cylinder intake valve spring compression shown, all other valves similar.

3. Compress the valve spring (3) and remove the valve retaining locks (4).






NOTE: If the springs are to be reused, identify their positions so that they can be reassembled into their original locations. Number 5 cylinder exhaust valve spring shown, all other valves similar.

4. Release the valve spring compression and remove the valve spring retainer (1) and valve spring (2).
5. If required, remove the valve(s) Intake And Exhaust Valves - Removal
6. If required, remove the valve guide seal and spring seat Valve Guide Seals - Removal.
