Engine Block Heater: Description and Operation

DESCRIPTION

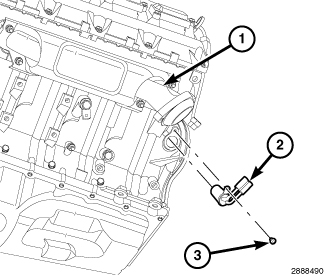

The 3.6L engine block heater (1) is mounted in the cylinder block (2), near the front drivers side corner. The engine block heater (1) is a dry cylinder type design and is powered by 110 volt AC.





The 5.7L engine block heater (1) is mounted in the cylinder block, near the left rear corner. The engine block heater (1) is a dry cylinder type design and is powered by 110 volt AC.
