Single Fan

3.6L SINGLE FAN

NOTE: If replacing the fan blades. The dual fan blades can be replaced separately from the motor. Single motor fan blades are balanced to the motor and must be replaced as a fan/motor assembly.






CAUTION: When installing the cooling fan assembly. Care must be used so that the fan shroud does not contact the radiator or the radiator fins. Damaged may cause leaking.

1. Position radiator cooling fan assembly (1) in vehicle.





2. Install the cooling fan assembly mounting bolts (3). Tighten to 6 Nm (50 in. lbs.).

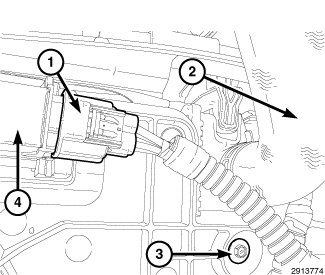

3. Connect cooling fan electrical connector (1).
4. Install the air filter housing Air Cleaner Body - Installation.
5. Connect the negative battery cable.
6. Operate engine until it reaches normal operating temperature. Check the fan for proper operation.
