Brake Master Cylinder: Description and Operation

DESCRIPTION

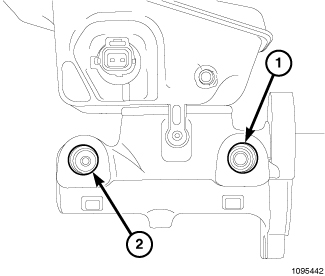

The master cylinder has a cast aluminum housing with a top mounted reservoir. The dual outlet port design housing features a primary port (1) machined for 8 mm (5/16 inch) tubing and a secondary port (2) machined for 6.25 mm (1/4 inch) tubing.

The master cylinder has a 25.4 mm bore.
