Single Pistion

ASSEMBLY

Special Tools:






CAUTION: Dirt, oil, and solvents can damage caliper seals. Ensure assembly area is clean and dry.

NOTE: Always use new, clean Mopar(R) DOT 3 Motor Vehicle Brake Fluid or equivalent when assembling brake caliper.

NOTE: Never use used or old piston seals or boots for reassembly.





1. Lubricate caliper piston, piston seal (1) and piston bore (2) with clean, fresh brake fluid.
2. Install NEW piston seal (1) in groove of caliper bore (2). Seal should be started at one area of groove and gently worked around and into the groove using only your clean fingers to seat it.

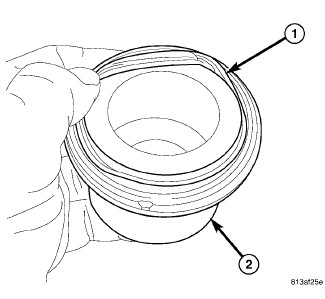

3. Install NEW dust boot (1) on piston (2) and work boot lip into groove at top of piston. Stretch boot downward, straightening boot folds, then move boot back upward as necessary until folds snap uniformly into place.





4. Install piston (1) into caliper piston (2) bore, pressing piston down to bottom of bore using hand-pressure. Using a piece of wood or wooden hammer handle may also suffice as long as piston and boot damage can be avoided. The dust boot will not seat at this time. Refer to following step.

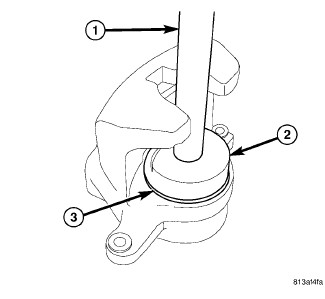

5. Seat dust boot (3) in caliper counterbore using Installer (2), Special Tool , with Handle (1), Special Tool. Install dust boot until it bottoms. Do not over-seat dust boot or damage will occur.





6. Install bleeder screw in correct threaded hole. Caliper housing is not side-specific, so it is important to install bleeder screw in threaded hole that will be uppermost once caliper is installed on vehicle. Tighten bleeder screw to 15 Nm (125 in. lbs.) torque.
7. Install caliper on vehicle. Disc Brake Caliper - Installation
