Brake and/or Accelerator Pedals - Removal - RHD

PEDAL - RHD

1. Move driver's seat to full rearward position.




2. Disconnect and isolate battery negative cable (2) from battery post.
3. Remove driver side silencer under instrument panel.Silencer Panel - Installation
4. Remove steering column opening cover. Steering Column Opening Cover - Installation





5. Remove stop lamp switch (2). Stop Lamp Switch - Removal






CAUTION: When removing booster push rod from brake pedal pin, be careful not to damage rubber O-ring on pin.

6. Remove booster push rod from pin on brake pedal. To do so:

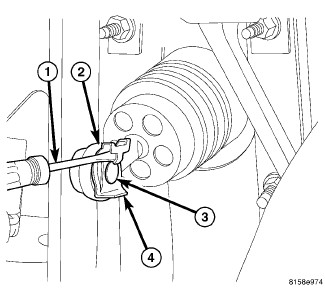

a. Position small screwdriver (1) between center tang on power brake booster brake pedal pin retaining clip (4).
b. Rotate screwdriver enough to allow retaining clip center tang to pass over end of brake pedal pin (3), then slide retaining clip off brake pedal pin.
c. Discard retaining clip. It is not to be reused. Install NEW retaining clip when assembling.
7. Slide booster push rod (2) off brake pedal pin (3).





8. Remove two lower (2) and one upper mounting screw fastening the radio amplifier/transmission control module assembly (1) in place.
9. Disconnect four wiring connectors and remove radio amplifier/transmission control module assembly (1).





10. Remove four power brake booster (2) mounting nuts (5).
11. Remove two nuts (4) fastening pedal bracket to upper dash panel (3).
12. Push power brake booster (3) forward into engine compartment as far as possible by hand. Do not force it.
13. Remove brake pedal (1).
