Brake and/or Accelerator Pedals - Installation - RHD

PEDAL - RHD





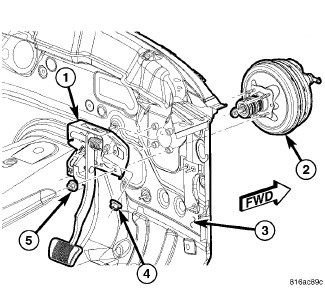

1. Install brake pedal assembly (4) under instrument panel and slide over booster push rod.
2. From engine compartment side, push power brake booster (3) mounting studs back through dash panel (2) and brake pedal bracket.
3. Install two upper mounting nuts (4) fastening pedal bracket to dash panel (3). Do not tighten at this time.
4. Install four power brake booster mounting nuts (5). Tighten nuts to 25 Nm (18 ft. lbs.).
5. Tighten two upper mounting nuts (4) to 25 Nm (18 ft. lbs.).

CAUTION: When installing booster push rod on brake pedal pin, be careful not to damage rubber O-ring on pin.

6. Slide booster push rod onto brake pedal pin. Install NEW retaining clip securing push rod to brake pedal.

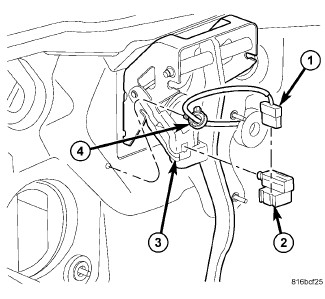

7. Install and adjust brake lamp switch (2) Stop Lamp Switch - Installation.

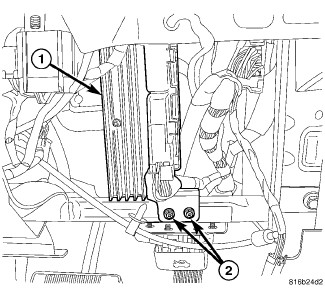

8. Connect four wiring connectors to radio amplifier/transmission control module assembly (1).
9. Place radio amplifier/transmission control module assembly (1) in mounted position. Install one upper and two lower (2) mounting screws.
10. Install steering column opening cover Steering Column Opening Cover - Installation.
11. Install driver side silencer under instrument panel Silencer Panel - Installation.





12. Connect battery negative cable (2) to battery post. It is important that this is performed properly.
13. Road test vehicle testing operation of brakes.
