Sunroof / Moonroof Switch: Testing and Inspection

DIAGNOSIS AND TESTING - SUNROOF SWITCH





1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console from the headliner. Overhead Console - Removal.
3. Disconnect the overhead wire harness connector from the overhead console connector receptacle.

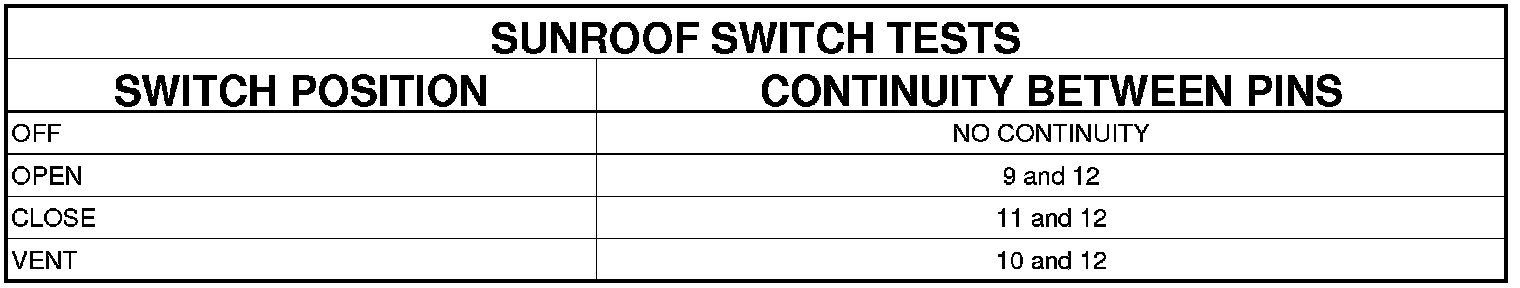

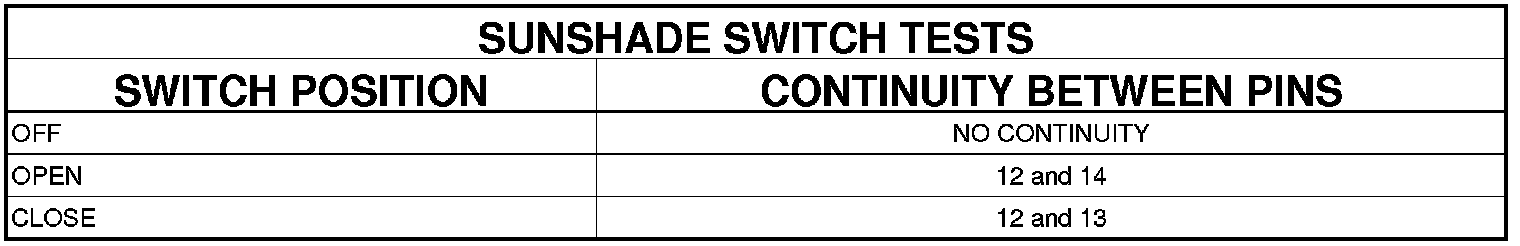

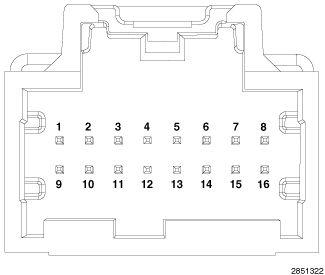

4. Using a multimeter, test the continuity between the terminals of the overhead console connector receptacle while actuating the power sunroof switch or power sunshade switch as shown in the Sunroof Switch Tests or Sunshade Switch Tests table.










5. If either switch fails any of the tests, replace the overhead console and both switches as a unit as required.
