Power Seat Memory Switch - Installation

INSTALLATION

NOTE: Take the proper precautions to protect the door handle and bezel from cosmetic damage while performing this procedure.

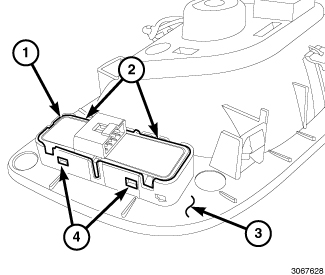

1. Install the memory seat switch (1) into the driver door handle bezel (3). Push the switch firmly into the bezel until the retaining tabs (2 and 4) are fully engaged.
2. Install the driver door handle and bezel Front Door Trim Panel - Installation.
3. Reconnect the negative battery cable.
4. Using a scan tool, perform the Power Seat System Verification test . Power Seat System Verification Test
5. Verify proper memory seat system operation.
