Fuel Door Switch - Installation

INSTALLATION

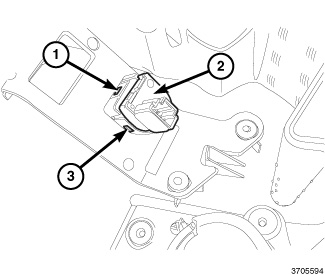

1. Align the fuel door release switch (2) with the receptacle integral to the reinforcement on the back side of the driver side front door trim panel.
2. Using hand pressure, push the switch into the receptacle until each of the switch latch tabs (1 and 3) are fully engaged.
3. Reinstall the trim panel onto the inside of the driver side front door. Front Door Trim Panel - Installation.
4. Reconnect the battery negative cable.
