Front Seat - Installation

INSTALLATION

WARNING: Handled seats carefully when servicing. Be careful not to drop seats on the workbench or floor. If dropped, the seat position sensor may become damaged and inoperative. Failure to follow these instructions may result in serious or fatal injury.

NOTE: Typical left side seat shown in illustrations. Right side seat similar.





1. Place the seat into the vehicle and connect the electrical connectors.

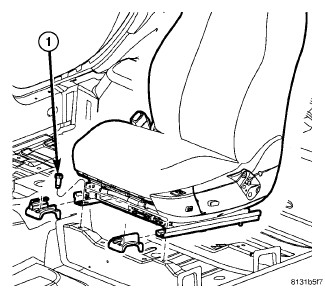

2. Install the two bolts (1) that secure the front of the seat to the body. Tighten the bolts to 70 Nm (52 ft. lbs.).





3. Reconnect the negative battery cable.
4. Move the seat full forward.

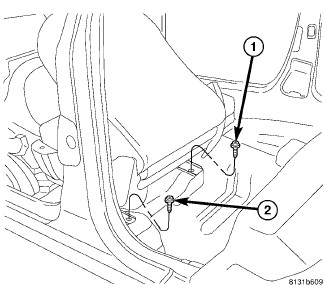

5. Install the two bolts (1) that secure the rear of the seat to the body. Tighten the bolts to 70 Nm (52 ft. lbs.).

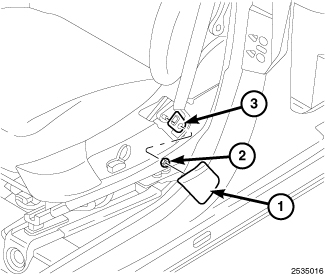

6. Install the lower seat belt anchor (3) onto the stud located on the seat cushion frame.
7. Install the nut (2) that secures the lower seat belt anchor to the stud. Tighten the nut to 37 Nm (27 ft. lbs.).
8. Install the trim cover (1).
9. Perform the supplemental restraint system verification test Service and Repair.
