Rear Seats

REAR SEAT

CAUTION: During heated seat element replacement, be careful not to fold or crease the new heating element. Folds or creases will cause premature heated seat element failure.

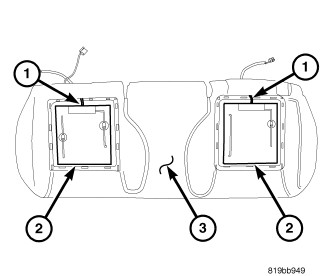

NOTE: Seat bottom cushion shown. Seat back cushion similar.

1. Peel off the adhesive backing from the replacement heated seat element (2).
2. Position the heated seat element onto the foam cushion (3) directly where the original heater element was located. There will be adhesive marks on the cushion outlining the factory installed location.
3. Firmly press the heated seat element onto the foam cushion. Make sure the adhesive is fully adhered to the cushion. Be careful not to fold or crease the new heating element.
4. Route the wire lead and connector (1) through the opening in the cushion.
5. Install the seat bottom or seat back cover onto the cushion.
6. Install the rear seat bottom or rear seat back cushion.
7. Reconnect the negative battery cable.
8. Verify proper rear heated seat system operation.
