Wind Deflector - Installation

INSTALLATION

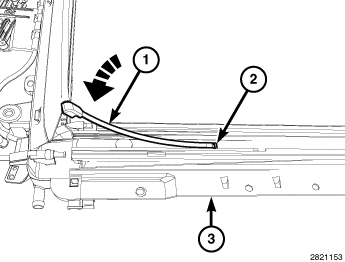

1. Position the deflector spring arms (1) into the slots (2) of the frame (3).

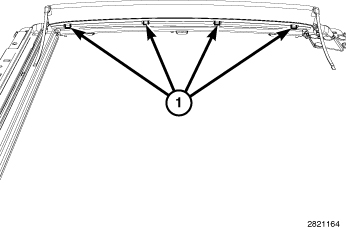

2. Place the lower rod under the plastic clips (1) and slide up into the clips. Be careful not to snap off the plastic clips.
3. Verify the sunroof operation and alignment.
