Dual Pane Sunroof Glass Guide - Removal

REMOVAL





1. Place the sunroof in the vent position.
2. Remove the sunroof assembly Dual Pane Sunroof - Removal.
3. Remove the motor Sunroof Motor - Removal.
4. Remove the glass . Service and Repair
5. Remove the wind deflector Wind Deflector - Removal.

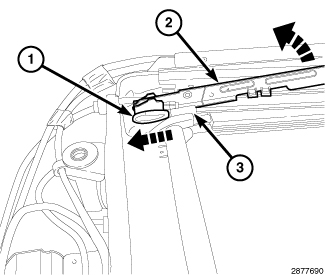

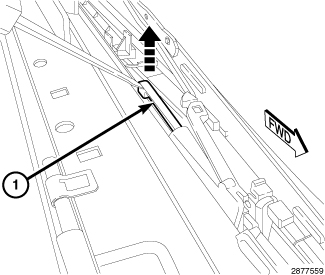

6. Lift the locking lever out of the notch in the channel guide.

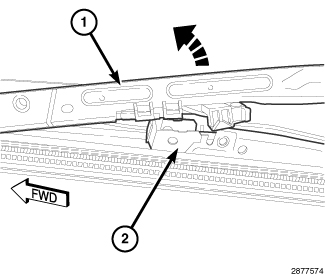

7. Slide the mechanism forward until the wedge shaped mechanism piece releases.





8. Lift the glass guide and push forward out of the channel guide.
