Dual Pane Sunroof Glass Guide - Installation

INSTALLATION

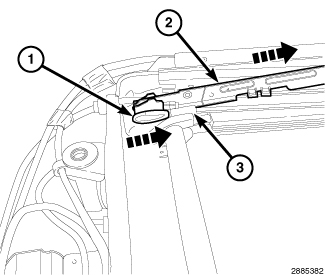

1. Insert the front foot into the guide channel and push the guide assembly rearward.

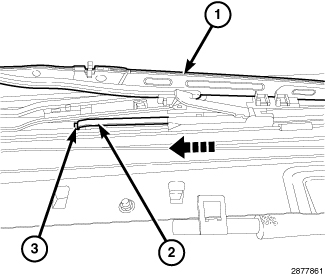

2. Slide the guide assembly rearward until the locking lever engages into the notch in the channel guide.

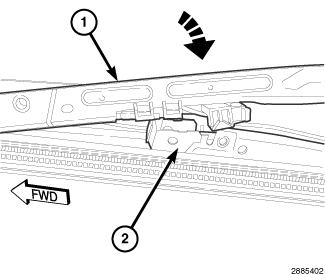

3. Slide the guide assembly (1) rearward until the wedge shaped mechanism piece connects to the drive unit (2).
4. Install the wind deflector. Wind Deflector - Installation
5. Install the glass. Dual Pane Sunroof Glass - Installation
6. Install the glass motor. Sunroof Motor - Installation
7. Install the sunroof assembly. Dual Pane Sunroof - Installation
