Front Panel

REMOVAL





1. Move the glass panel into the full closed position.
2. Open the sunshade fully.

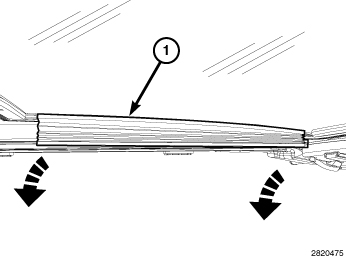

3. Separate the mechanism covers (1) from the tabs on the glass panel.

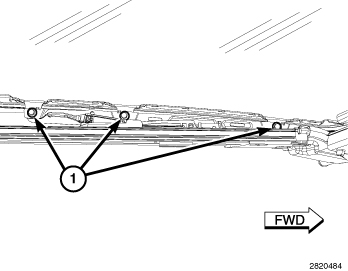

4. Remove the six glass panel screws (1).

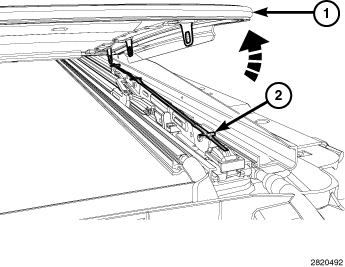

5. Lift off the glass panel (1) from the guide mechanisms (2) and remove from vehicle.
