Front Panel

INSTALLATION

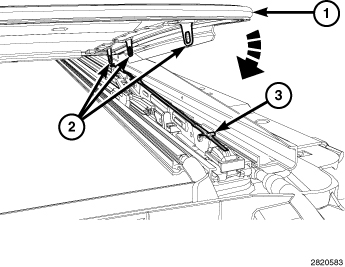

1. Position the glass panel (1) onto the guide mechanism/lift arms (3).

CAUTION: Make sure that all six glass tabs (2) go into the slots on the guide mechanism/lift arms (3).






2. Start the six attaching screws (1).
3. Connect a 12v power supply and verify that the sunroof is in the closed position.
4. Adjust the sunroof glass. Front Panel
5. Tighten the six screws (1) to 4.5 Nm (40 in. lbs.).

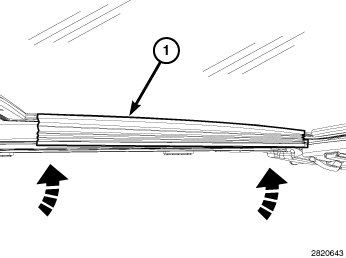

6. Position the mechanism covers (1) over the glass tabs between the locating features and seat fully.
7. Verify sunroof operation and alignment.
