Sunroof Drain Channel - Removal

REMOVAL






CAUTION: Vertical uprights (2) located on the channel support should be pried apart using care. If an upright is damaged during service the entire sunroof assembly will need to be replaced.

1. Remove the front glass panel. Front Panel

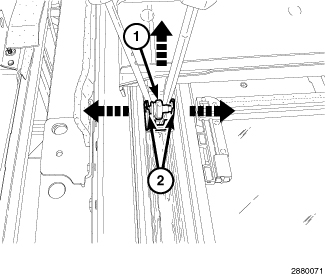

2. Remove each side of the drain channel (1) by prying apart the two vertical uprights (2) on the channel support.
