Dual Pane Sunroof Sunshade - Installation

INSTALLATION





1. Locate the flattened steel rod on the right hand side of the shade assembly

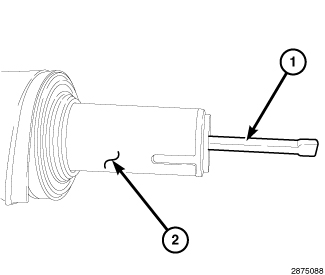

2. Insert the flattened steel rod into the slot (1) in the steel plate in the rear beam (2).

CAUTION: If the sunshade spring lock is released before the sunshade is installed, the sunshade has to be replaced with a new one. Once released, the sunshade spring lock can not be reset.

3. With the sunroof held firmly, push the sunshade assembly to the right to release the shade spring lock.

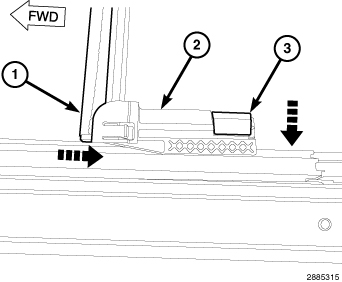

4. Push the left side of the sunshade down until the white plastic pin snaps into the hole on the right hand side of the rear beam.





NOTE: The sunshade retraction spring force is significant. Firmly hold onto the sunshade while securing the shade to the overmolds in the following steps.

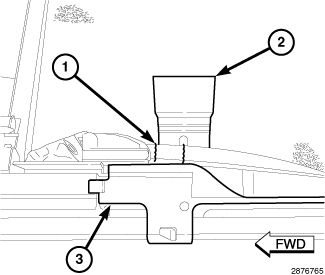

5. Extend the front shade beam forward of the cable overmolds and work the fabric under the cable overmolds.
6. Insert the white clips into the stitched pockets on the sunshade cloth and install the clip onto the rear edge of the cable overmold.

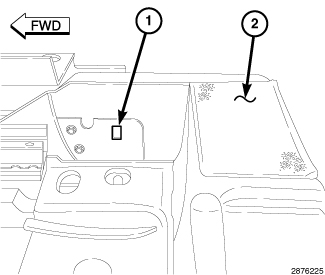

7. Rotate the sunshade front beam (1) into the front of the cable overmolds (2) and seat until they click into place fully.
8. Install the rear sunroof glass assembly. Rear Panel
