Memory Seat Module - Installation

INSTALLATION

NOTE: Depending on how equipped, more memory seat module electrical connectors may be present than shown in the illustration.





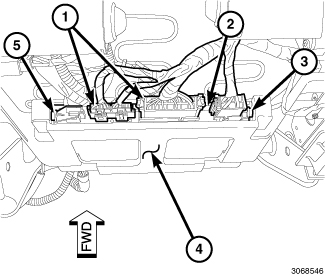

1. Position the Memory Seat Module (MSM) (2) to the bracket (4) and connect all electrical connectors to the rear of the MSM.

CAUTION: Properly align the Memory Seat Module (MSM) retaining tabs to the bracket, prior to engagement. Failure to follow these instructions may result damage to the MSM retaining tabs.

2. Install the MSM into the bracket and engage the two rear MSM retaining tabs to the bracket.
3. Engage the two front MSM retaining tabs (3 and 5) to the bracket by carefully pulling down on the front of the MSM.
4. Connect all the electrical connectors (1) to the front of the MSM.
5. Install the driver seat Front Seat - Installation
6. Reconnect the negative battery cable.

NOTE: Anytime a Memory Seat Module (MSM) is replaced, the MSM must be cleared of all learned parameters using a scan tool, and the Power Seat System Verification test must be performed.

7. Using a scan tool, select Clear All MSM Learned Parameters, found under the Memory Seat Module, Miscellaneous Functions tab.
8. Perform the Power Seat System Verification test . Power Seat System Verification Test
9. Verify proper memory seat system operation.
