Keyless Entry Transmitter Battery: Service and Repair

BATTERY REPLACEMENT






CAUTION: Do not touch or disturb the metal contacts for the battery. Avoid touching the new battery. Battery contamination from oils on your skin may result in shortened battery life. If the battery or contacts are contaminated, clean them thoroughly with rubbing alcohol.

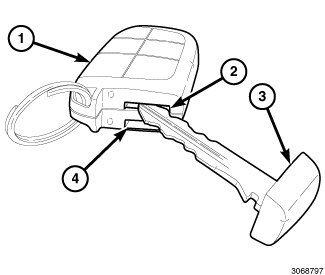

1. Unlatch and remove the emergency key (3) from the storage slot (4) of the FOB with Integrated Key (FOBIK) case (1).
2. With the front of the FOBIK case facing upward, insert the tip of the emergency key into the notch (2) between the case halves and twist the key to unsnap and separate the front case half from the back case half.

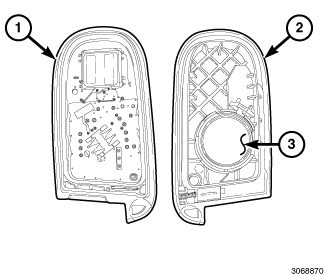

3. Lift the battery (3) out of the receptacle in the back half of the FOBIK case (2).
4. Replace the battery with a recommended replacement battery. [1][2]Keyless Entry Transmitter.
5. Install the new battery into the receptacle in the back half of the FOBIK case with the negative terminal facing upward.
6. Align the front half of the FOBIK case (1) with the back half.
7. Using hand pressure, squeeze the two FOBIK case halves around their perimeters until they snap back together.
8. Reinsert the emergency key into the storage slot of the FOBIK case.
9. Test the FOBIK operation.
