Center Floor Console

CENTER FLOOR CONSOLE

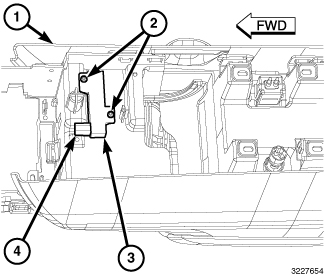

1. Position the Low Frequency (LF) antenna (3) to the underside of the center floor console (1).
2. Install and tighten the two screws (2) that secure the antenna to the console. Tighten the screws securely.
3. Reconnect the wire harness connector to the antenna connector receptacle (4).
4. Reinstall the console into the vehicle. Floor Console - Installation.
5. Reconnect the battery negative cable.
