C-Pillar Trim Panel - Removal
>>
Upper
Upper
UPPER

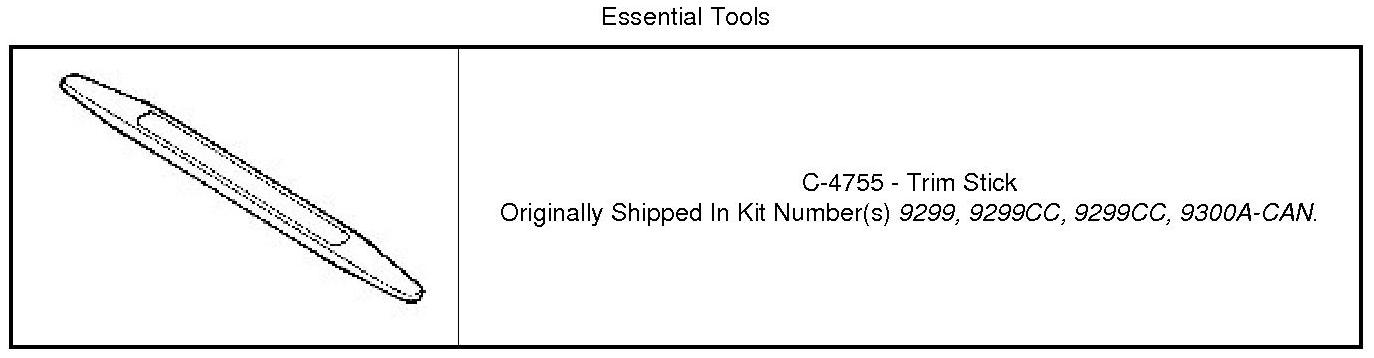

Special Tools:
1.
Disconnect the negative battery cable.
2.
Using trim stick or equivalent, carefully pry the upper C-pillar trim (1) away from the lower C-Pillar trim (2).
3.
Remove the upper C-Pillar trim (2).
