Lower

LOWER

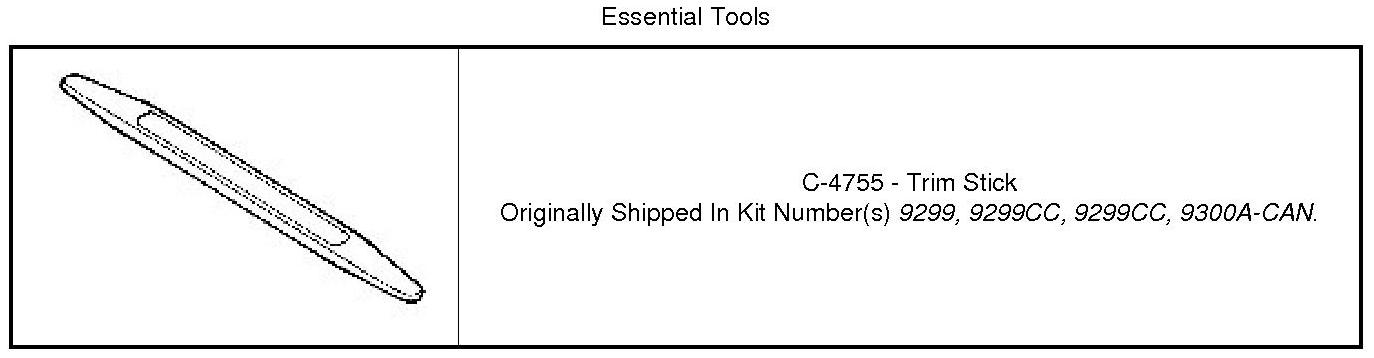

Special Tools:










1. Disconnect the negative battery cable.
2. Using or equivalent, carefully pry the upper C-pillar trim (1) away from the lower C-Pillar trim (2).
3. Remove the upper C-Pillar trim (2).
4. Remove the seat belt(s) at the rear seat, Seat Belt Retractor - Removal.
5. Remove the rear seat back and cushion from the vehicle, Seat Cushion Cover - Removal ,Seat Back - Removal.





6. Remove the rear seat back side bolster from the quarter inner panel, Seat Bolster - Removal.
7. Using or equivalent, carefully pry the lower C-pillar trim (1) away to disengage it's retaining clips/tabs.
8. Feed the seat belt (1) through the panel opening and remove the lower C-pillar trim (2) from the quarter inner panel.
