Lower

LOWER





1. Check to be certain that the spring nuts (2) are properly installed and in good condition on the quarter inner panel (1). Replace the spring nut if any damage is evident.

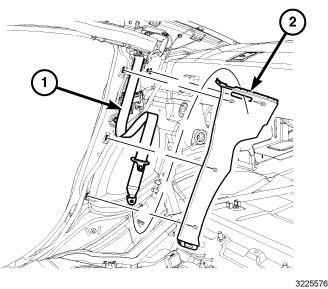

2. Feed the seat belt (1) through the lower C-Pillar trim panel (2).
3. Position the lower C-pillar trim (2) onto the quarter inner panel with the lower edge sequenced over the rear extension of the rear door sill scuff plate.
4. Hand tap to secure the lower C-pillar trim (1) to the rear shelf panel.





5. Align and position the upper C-Pillar trim panel (2).
6. Hand tap to install the upper C-Pillar trim panel (2).
7. Install the seat belt at the seat, Seat Belt Retractor - Installation.
8. Install the rear seat back side bolster to the quarter inner panel, Seat Bolster - Installation.
9. Reinstall the rear seat back and cushion into the vehicle, Seat Cushion Cover - Installation ,Seat Back - Installation.
10. Connect the negative battery cable.
